SportScreen Vanish 9 Retractable Golf Simulator Enclosure

From £2,999.99

In Stock

The SportScreen Vanish 9 is a retractable golf simulator screen and enclosure that folds into your ceiling in under 5 minutes. The compact model in the Vanish Series — 226cm x 226cm projectable area with a 1:1 screen ratio, ideal for smaller garages and tight spaces. Choose Hand Crank (no power needed) or Remote Control (motorised one-touch operation). Includes premium 3-ply impact screen, side screens, ceiling panel, baffles and universal mounting brackets. Patented retractable technology from the creators of the Dragons’ Den-backed SportScreen. 2-year warranty included.

Free Delivery

Orders over £500

Easy Returns

14-day policy

Secure Pay

SSL encrypted

SportScreen Vanish 9 Retractable Golf Simulator Enclosure

The Vanish 9 is the most compact model in The SportScreen’s retractable golf simulator enclosure range. At 2.26m square with a 1:1 projectable area, it’s designed for smaller garages and multi-use rooms where space is tight. This ceiling-mounted enclosure deploys in minutes and retracts completely out of sight when you’re not playing.

Retractable Design — Your Space, Your Way

Unlike traditional permanent golf simulator enclosures that take over an entire room, the Vanish Series uses patented retractable technology to fold seamlessly into your ceiling. In under 5 minutes, the full enclosure rolls up and out of the way, leaving your space completely clear. Created by the team behind The SportScreen — known for their successful pitch on Dragons’ Den.

Built for Real Golf Shots

Premium 3-ply impact screen with a blackout backing layer absorbs high-velocity golf shots while delivering a clear, bright projected image. Construction-grade mesh side screens and reinforced corner protection strips keep golf balls safely contained within the enclosure.

The Compact Simulator Solution

The Vanish 9 suits smaller home spaces where a full double-garage enclosure won’t fit. With a 226cm x 226cm (89″ x 89″) projectable area and a 1:1 screen ratio, it delivers a genuine simulator image without demanding the footprint of the larger Vanish models. A suggested room depth of 5.18m gives enough swing room for a full driver shot, and the ceiling requirement of 2.74m–3.2m works in most UK garages and converted outbuildings.

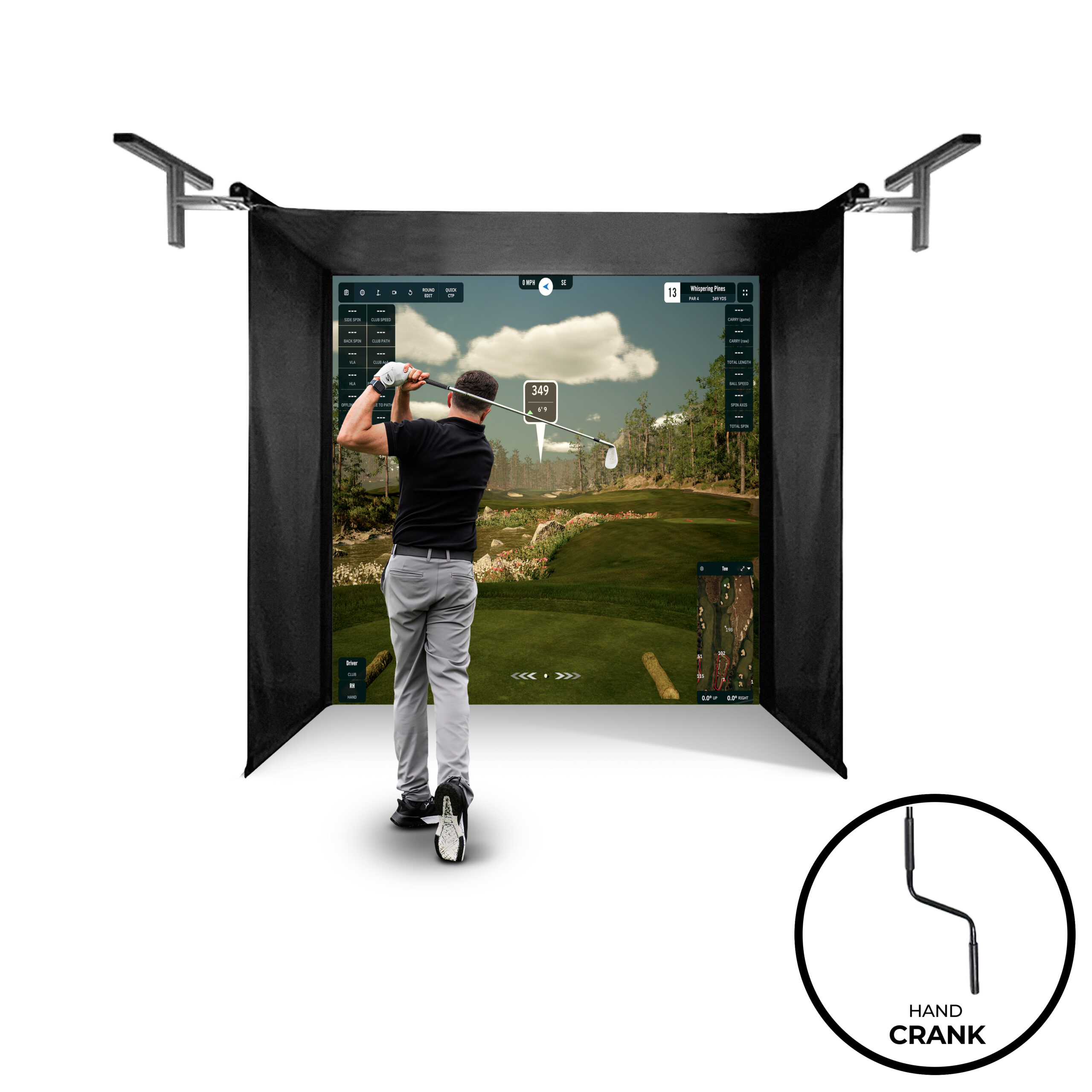

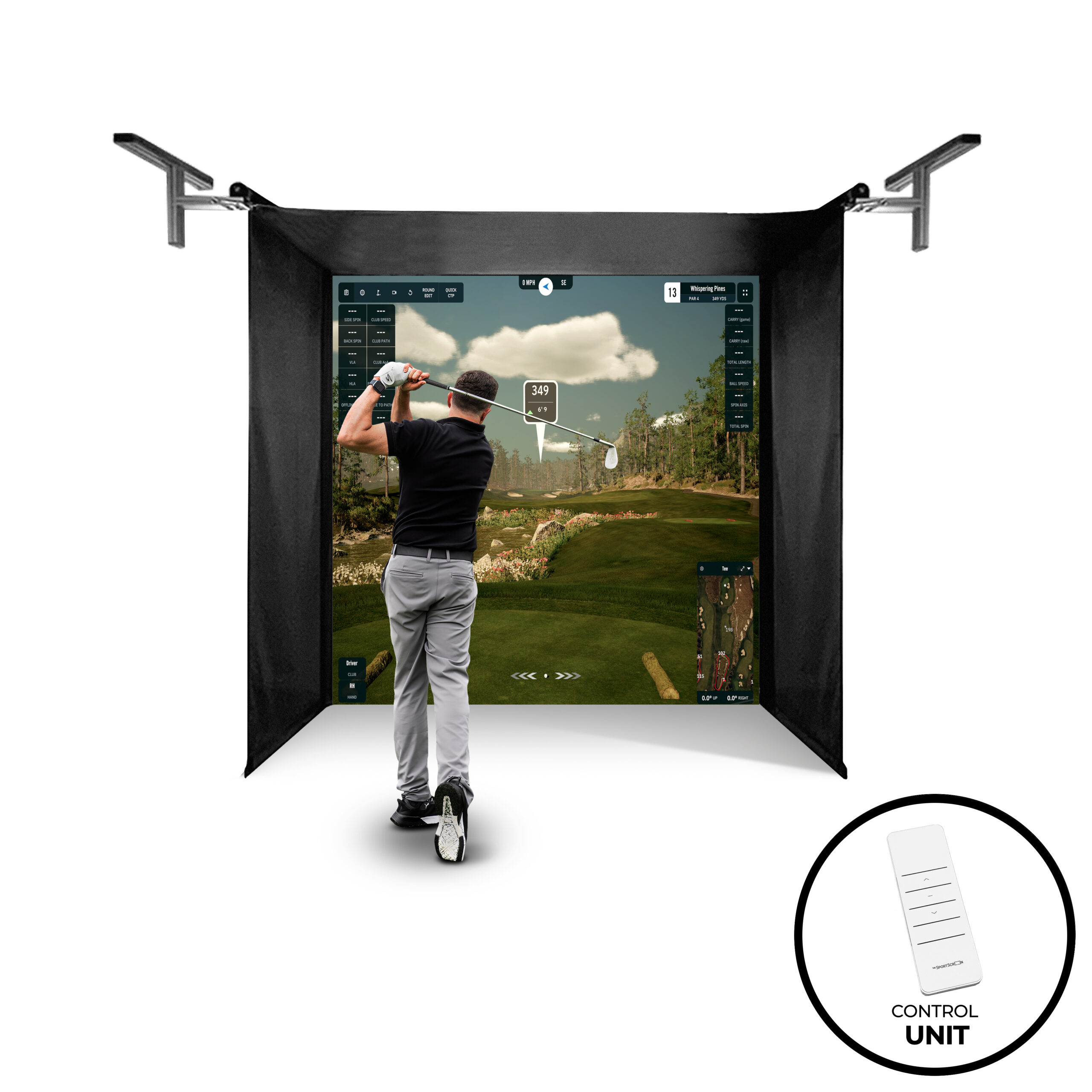

Hand Crank or Remote Control

Choose the control method that suits your space. The Hand Crank model requires no electrical connection — simply turn the handle to deploy or retract. The Remote Control model adds motorised operation at the touch of a button, requiring a standard power outlet on each side of the screen.

Key Features

  • Fully retractable — folds into ceiling in under 5 minutes
  • Compact 226cm x 226cm (89″ x 89″) projectable area
  • 1:1 screen ratio — ideal for smaller rooms
  • Premium 3-ply impact screen with blackout layer
  • Hand Crank or Remote Control options
  • Construction-grade mesh side screens
  • Reinforced corner protection strips
  • Universal brackets for ceiling or wall mounting
  • 2-year manufacturer warranty

What’s Included

  • 1 x Impact support membrane
  • 1 x Premium 3-ply impact screen
  • 2 x Side screens
  • 1 x Ceiling panel
  • 2 x Corner sealing strips
  • 2 x Side baffles
  • 1 x Front baffle
  • Mounting brackets and hardware
  • Hand crank mechanism or remote control motor system

Why Choose TEKDEN?

UK Golf Simulator Specialists

We’re not a generic retailer. TEKDEN focuses exclusively on golf simulation technology, so every product is selected by people who understand the game.

In-House Product Testing

Every product we sell has been tested in our own simulators. We don’t list anything we wouldn’t use ourselves.

Expert Support

Got questions? Our team are golfers who use simulators daily. We provide real advice, not scripted responses.

Fast UK Shipping

Stock held in the UK means quick delivery. No waiting weeks for imports or dealing with overseas returns.

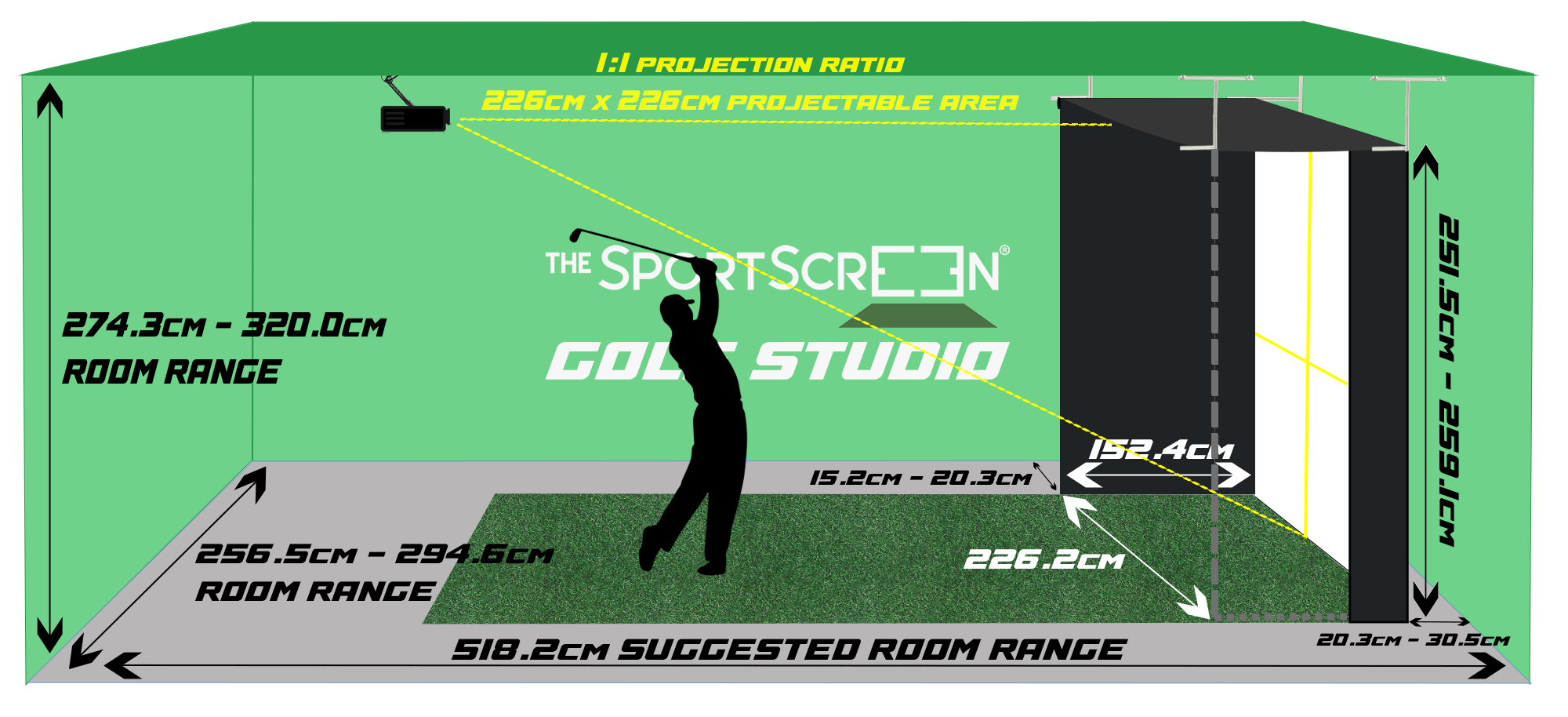

Technical Specifications

Model Vanish 9
Projectable Screen Area 226cm x 226cm / 89″ x 89″
Screen Ratio 1:1
Screen Width 226.2cm / 89″
Screen Height (hanging) 251.5cm – 269.3cm / 99″ – 106″
Ceiling Height Required 274.3cm – 320.0cm / 108″ – 126″
Room Width Required 256.5cm – 294.6cm / 101″ – 116″
Suggested Room Depth 518.2cm / 204″
Wall Clearance 20.3cm – 30.5cm (8″–12″) behind screen
Impact Screen Premium 3-ply with blackout layer
Mounting Universal brackets — ceiling or wall
Retraction Time Under 5 minutes
Warranty 2 years (with approved impact screen)
Shipping Pallet delivery (5 boxes)

Frequently Asked Questions

How does the retractable mechanism work?
The Vanish Series uses a patented roll-up system. The entire enclosure — impact screen, side screens, ceiling panel and baffles — rolls up into a compact housing mounted to your ceiling. With the hand crank model, simply turn the handle. With the remote control, press the button. Both take under 5 minutes.
Will the Vanish 9 fit in my space?
The Vanish 9 needs a room at least 2.57m wide, 5.18m deep and 2.74m high to work properly. Standard UK room ceilings (2.4m) are typically too low — but most garages and converted spaces meet the requirement. If your ceiling is higher than 3.2m, 2ft screen extensions are available.
What is the difference between Hand Crank and Remote Control?
The Hand Crank uses a manual handle — no electrical connection needed. The Remote Control is motorised and operates at the touch of a button, but requires a standard power outlet on each side. Both retract in under 5 minutes.
Do I need a projector with this?
Yes. The Vanish is a golf simulator enclosure — it provides the impact screen, side containment and structure. You will still need a projector, launch monitor, hitting mat and simulation software. TEKDEN stocks all of these and can advise on the best combination for your space.
Can I use this for other sports?
Yes. A multi-sport attachment is available separately from The SportScreen for hockey, baseball and lacrosse.

Delivery & Returns

UK Mainland Delivery: Pallet delivery — contact us for lead times and shipping quote

Packaging: Shipped on pallet (5 boxes)

Scottish Highlands & Islands: Please contact us for delivery quote

Returns: 14-day returns policy on unused items in original packaging
