Retractable Enclosures

SportScreen Vanish 16 Retractable Golf Simulator Enclosure

In stock
  • The SportScreen Vanish 16 is a retractable golf simulator screen and enclosure that folds into your ceiling in under 5 minutes.
  • At 4.7m wide with a widescreen 16:9 ratio and 2.29m projectable height, it delivers a cinematic golf simulation experience for larger spac...
  • Choose Hand Crank or Remote Control.
  • Includes premium 3-ply impact screen, side screens, ceiling panel, baffles and universal brackets.
Price

From £4,499.99 inc. VAT

UK delivery available
Need advice before buying? 0333 188 5877
  • Delivery calculated at checkout
  • Secure checkout
  • Expert product support
  • Easy returns support

Business finance available Spread the cost on suitable equipment and room packages.

Ask about finance

SportScreen Vanish 16 Retractable Golf Simulator Enclosure

The Vanish 16 is the widescreen model in The SportScreen’s retractable golf simulator enclosure range. At 4.7m wide with a 16:9 screen ratio, it delivers a cinematic, panoramic golf simulation experience that fills your field of vision. Designed for larger garages, outbuildings and dedicated golf rooms where width is available.

Retractable Design — Your Space, Your Way

Unlike traditional permanent golf simulator enclosures that take over an entire room, the Vanish Series uses patented retractable technology to fold seamlessly into your ceiling. In under 5 minutes, the full enclosure rolls up and out of the way, leaving your space completely clear. Created by the team behind The SportScreen — known for their successful pitch on Dragons’ Den.

Built for Real Golf Shots

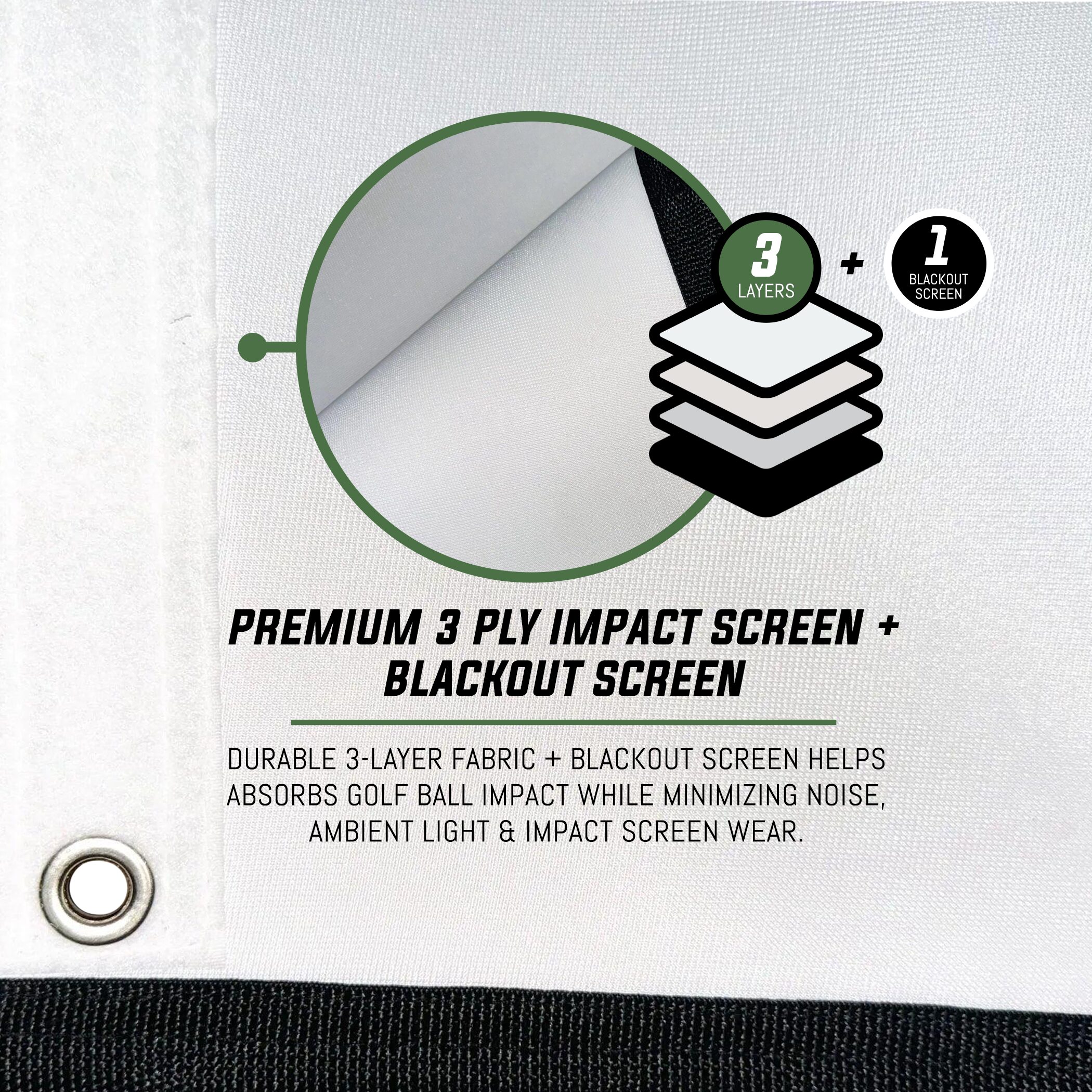

Premium 3-ply impact screen with a blackout backing layer absorbs high-velocity golf shots while delivering a clear, bright projected image. Construction-grade mesh side screens and reinforced corner protection strips keep golf balls safely contained within the enclosure.

Widescreen 16:9 Projection

The Vanish 16 offers a 16:9 widescreen aspect ratio — matching the native output of most projectors and golf simulation software. This means a larger, edge-to-edge projected image with no wasted screen space. The 4.75m (187″) screen width combined with 2.29m (90″) projectable height creates a genuinely cinematic golf experience.

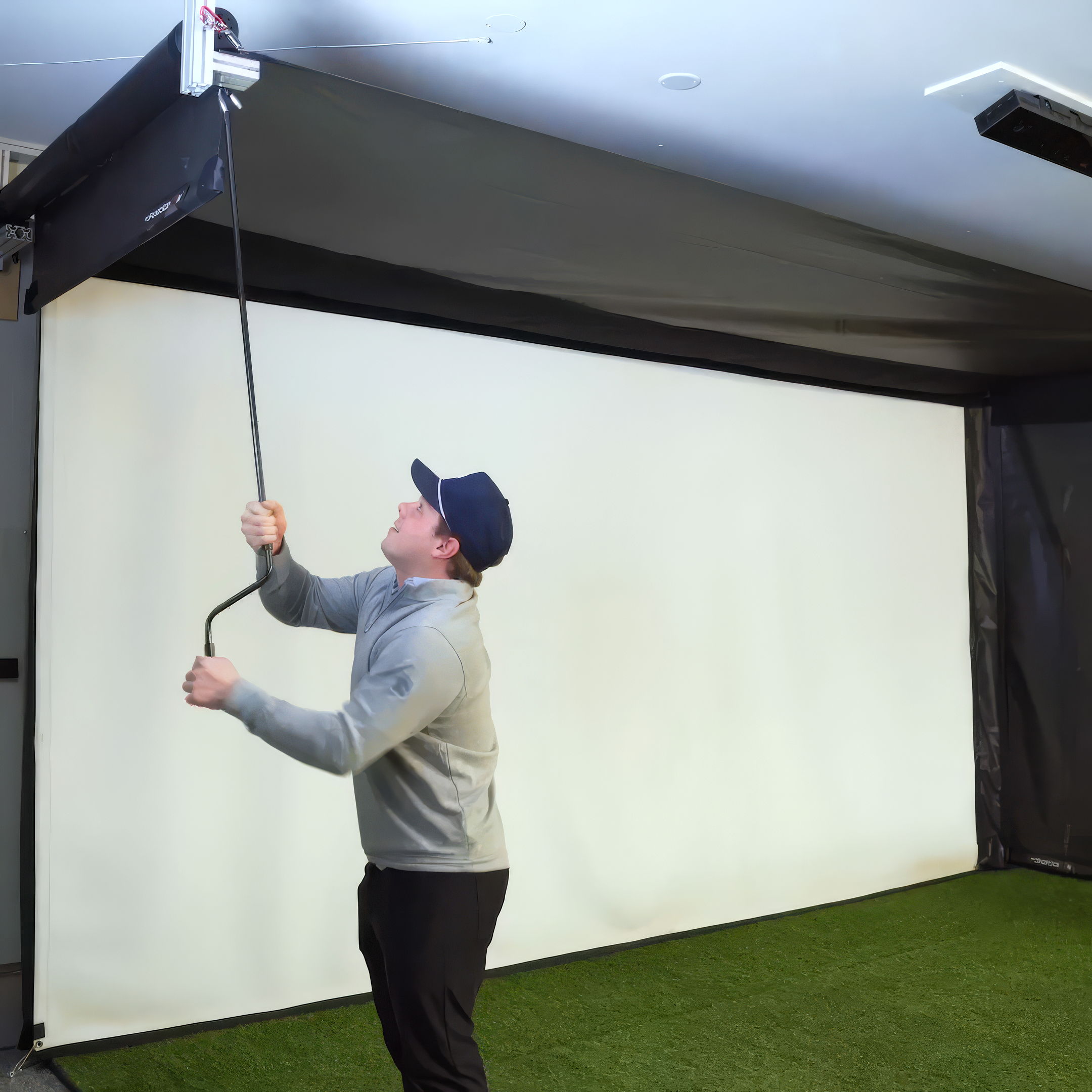

Hand Crank or Remote Control

Choose the control method that suits your space. The Hand Crank model requires no electrical connection — simply turn the handle to deploy or retract. The Remote Control model adds motorised operation at the touch of a button, requiring a standard power outlet on each side of the screen.

Key Features

  • Fully retractable — folds into ceiling in under 5 minutes
  • 4.7m wide — widescreen 16:9 ratio
  • 4.75m (187″) screen width for cinematic projection
  • 2.29m (90″) projectable screen height
  • Premium 3-ply impact screen with blackout layer
  • Hand Crank or Remote Control options
  • Construction-grade mesh side screens
  • Reinforced corner protection strips
  • Universal brackets for ceiling or wall mounting
  • 2-year manufacturer warranty

What’s Included

  • 1 x Impact support membrane
  • 1 x Premium 3-ply impact screen
  • 2 x Side screens
  • 1 x Ceiling panel
  • 2 x Corner sealing strips
  • 2 x Side baffles
  • 1 x Front baffle
  • Mounting brackets and hardware
  • Hand crank mechanism or remote control motor system

Why Choose Tekden?

UK Golf Simulator Specialists

We’re not a generic retailer. Tekden focuses exclusively on golf simulation technology, so every product is selected by people who understand the game.

In-House Product Testing

Every product we sell has been tested in our own simulators. We don’t list anything we wouldn’t use ourselves.

Expert Support

Got questions? Our team are golfers who use simulators daily. We provide real advice, not scripted responses.

Fast UK Shipping

Stock held in the UK means quick delivery. No waiting weeks for imports or dealing with overseas returns.

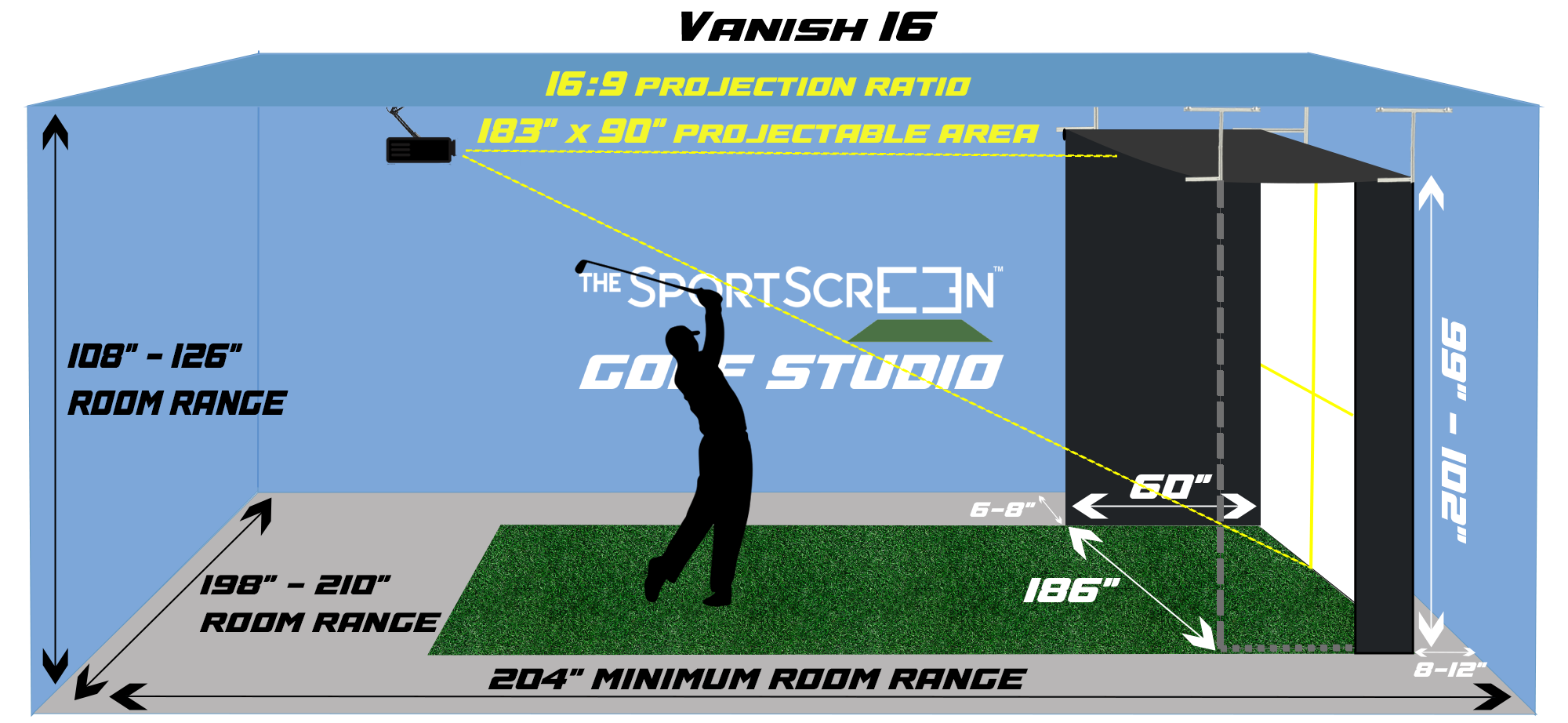

Technical Specifications

Model Vanish 16
Enclosure Width 4.7m / 15’6″ (bracket to bracket: 4.86m / 191.5″)
Enclosure Height 2.5m – 2.6m / 8’3″ – 8’6″
Enclosure Depth 1.5m / 5’0″
Screen Width 4.75m / 187″
Projectable Screen Height 2.29m / 90″
Screen Ratio 16:9
Impact Screen Premium 3-ply with blackout layer
Wall Clearance 20–30cm (8″–12″) behind screen
Mounting Universal brackets — ceiling or wall
Retraction Time Under 5 minutes
Warranty 2 years (with approved impact screen)
Shipping Pallet delivery (5 boxes)

Frequently Asked Questions

How does the retractable mechanism work?
The Vanish Series uses a patented roll-up system. The entire enclosure rolls up into a compact housing mounted to your ceiling. With the hand crank, simply turn the handle. With the remote control, press the button. Both take under 5 minutes.
Why choose 16:9 over 4:3?
The 16:9 widescreen ratio matches the native output of most projectors and golf simulation software (GSPro, E6 Connect, etc.). This means a larger, edge-to-edge image with no black bars. If you have the room width, 16:9 delivers a more immersive, cinematic experience.
What is the difference between Vanish 16 and Vanish 16H?
Both are 4.7m wide with 16:9 ratio. The Vanish 16 suits standard ceiling heights (2.5m–2.6m) with a 2.29m projectable height. The 16H is for taller ceilings (2.9m–3m) with a larger 2.59m projectable height.
What is the difference between Hand Crank and Remote Control?
The Hand Crank uses a manual handle — no electrical connection needed. The Remote Control is motorised and operates at the touch of a button, but requires a standard power outlet on each side. Both retract in under 5 minutes.
Do I need a projector with this?
Yes. The Vanish is a golf simulator enclosure — it provides the impact screen, side containment and structure. You will still need a projector, launch monitor, hitting mat and simulation software. Tekden stocks all of these and can advise on the best combination for your space.
Can I use this for other sports?
Yes. A multi-sport attachment is available separately from The SportScreen for hockey, baseball and lacrosse.

Delivery & Returns

UK Mainland Delivery: Pallet delivery — contact us for lead times and shipping quote

Packaging: Shipped on pallet (5 boxes)

Scottish Highlands & Islands: Please contact us for delivery quote

Returns: 14-day returns policy on unused items in original packaging
